Technical Specification

Bore (mm) 53.5
Stroke (mm) 48.8
Swept Volume (cc) 109.7
Compression Ratio (-) 10.0 : 1
Max Torque (Nm) @ rpm 8.7 @ 4500
Max Power (kW) @ rpm 6.03 @ 7350
Max power (bhp) 8.08
EFI System Eco Thrust Fuel Injection Technology
Air Filter Paper Filter Element
Emission Compliance BS VI
Max speed kmph 90 Kmph
Clutch type Wet, Multiple – Disc
No of Gears 4 Speed Constant Mesh
Front Telescopic (Oil damped)

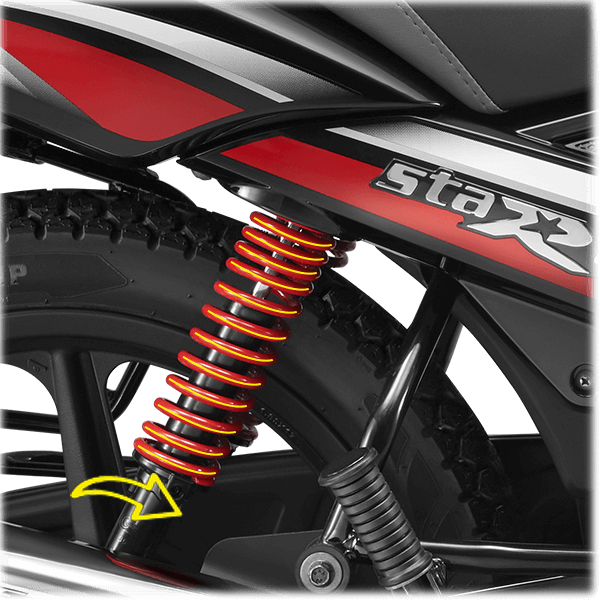

Rear 5 step adjustable Hydraulic Shock Absorber
Front (Type / Dia) (mm) Drum / 130
Rear Drum / 110 (Synchro)

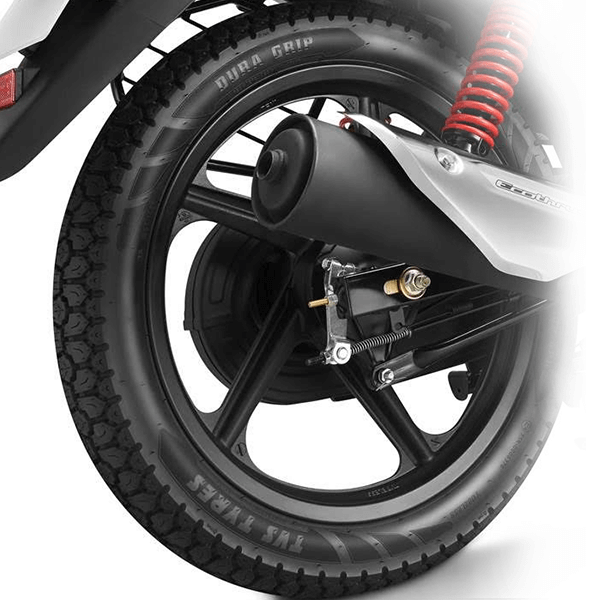

Front 2.75 X 17″ 41P 4PR, Tubeless
Rear 3.0 X 17″ 50P 6PR, Tubeless
Fuel Tank Capacity (litres) 10
Engine oil (litres) 1
Ignition Type ECU
Battery 12V 4Ah MF
Headlamp (W) LED, 11W
Tail Lamp / Stop Lamp (W) 5 / 21
Horn Type / No 12V DC / 1
Length (mm) 1980
Width @ Handlebar (mm) 750
Height (mm) 1080
Wheel Base (mm) 1260
Ground Clearance (mm) 172
Kerb Weight (kg) 116 (Drum)
